Automatic Metallographic Abrasive Cutoff Saw Q-100Z with Touch Screen Controller

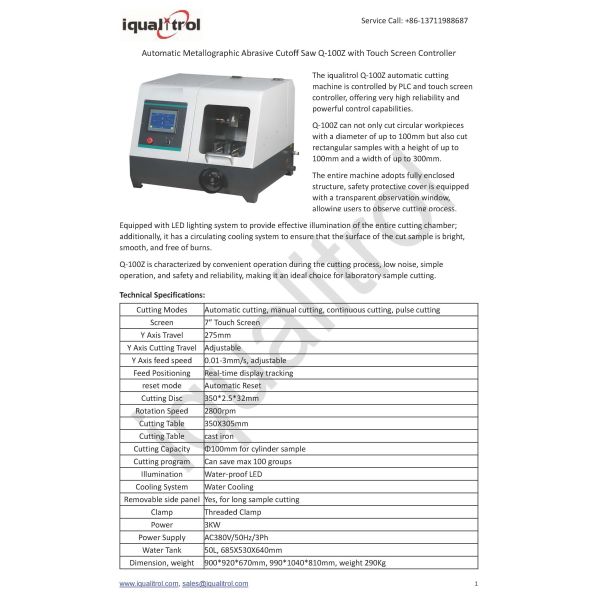

Download Technical Data: Metallographic Abrasive Cutoff Saw Q-100Z
Brief Introduction:
The iqualitrol Q-100Z automatic cutting machine is controlled by PLC and touch screen controller, offering very high reliability and powerful control capabilities.
Q-100Z can not only cut circular workpieces with a diameter of up to 100mm but also cut rectangular samples with a height of up to 100mm and a width of up to 300mm.
The entire machine adopts a fully enclosed structure, and the safety protective cover of the cutting chamber is equipped with a transparent observation window, allowing users to observe the entire cutting process of the sample.
Equipped with LED lighting system to provide effective illumination of the entire cutting chamber; additionally, it has a circulating cooling system to ensure that the surface of the cut sample is bright, smooth, and free of burns.
Q-100Z is suitable for cutting samples of various metal and non-metal materials for metallographic and petrographic observation.
Q-100Z is characterized by convenient operation during the cutting process, low noise, simple operation, and safety and reliability, making it an ideal choice for laboratory sample cutting.
Technical Specifications:
| Cutting Modes | Automatic cutting, manual cutting, continuous cutting, pulse cutting |
| Screen | 7” Touch Screen |
| Y Axis Travel | 275mm |
| Y Axis Cutting Travel | Adjustable |
| Y Axis feed speed | 0.01-3mm/s, adjustable |
| Feed Positioning | Real-time display tracking |
| reset mode | Automatic Reset |
| Cutting Disc | 350*2.5*32mm |
| Rotation Speed | 2800rpm |
| Cutting Table | 350X305mm |
| Material of Cutting Table | cast iron |
| Cutting Capacity | Φ100mm for cylinder sample |
| Cutting program | Can save max 100 groups |
| Illumination | Water-proof LED |
| Cooling System | Water Cooling |
| Removable side panel | Yes, for long sample cutting |
| Clamp | Threaded Clamp |
| Power | 3KW |
| Power Supply | AC380V/50Hz/3Ph |
| Water Tank | 50L, 685X530X640mm |
| Net & Packing Dimension | 900*920*670mm, 990*1040*810mm, weight 290Kg |
